- Take out cavity side part surface from mold configuration drawing.
- X and Y axis side chimeric with mold plate, Use screw fastener or drawbar or other tools to fixation.
- 3，Injection part fabrication and dimension control basic decision by part mold drawing, Same time we should consider few issue as below:
- Injection part dimension tolerance.
- Discuss with other assembly parts.
- Easy for mold cavity fix in the future time.
- The machine work best ability what’s the machine can do it best.
- Processing charges.
- Other more few issues.
3, Core and cavity use hooks with core and cavity standard parts to assembly it. X and Y axis direction must use stringent tolerance to control it.

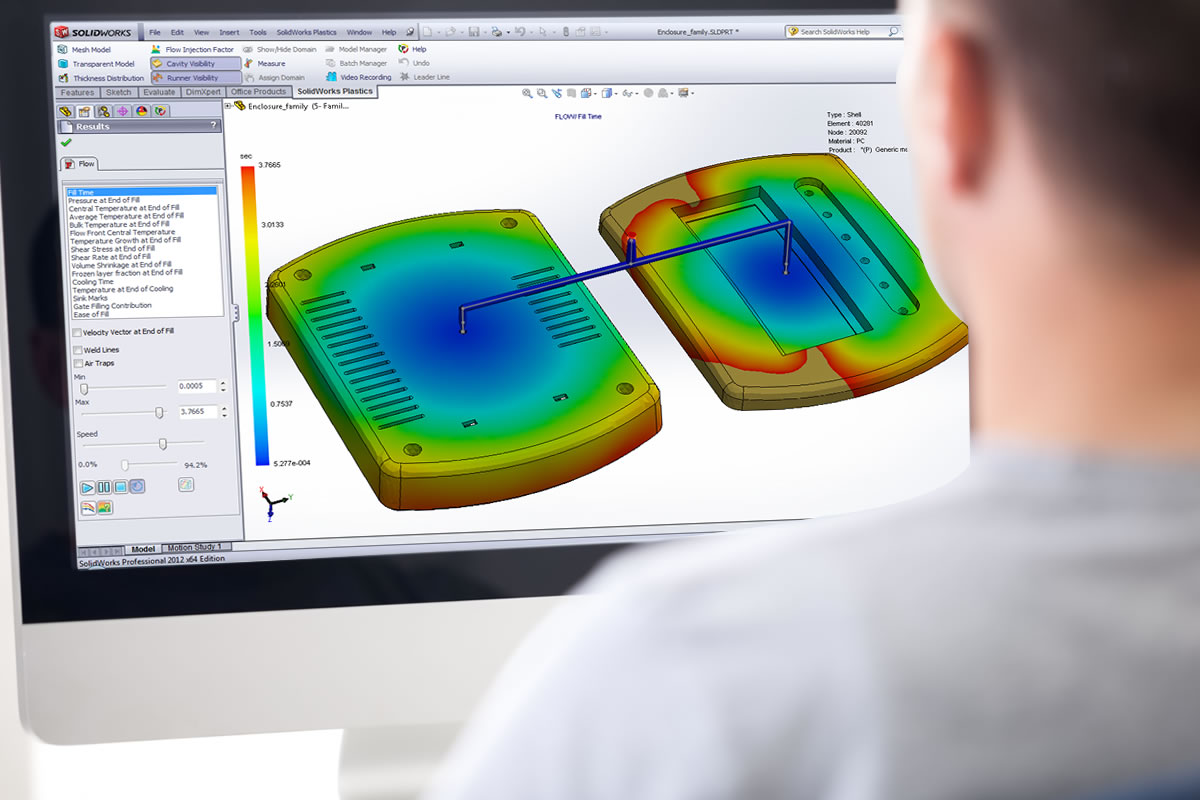

Mold flow
